RAOB 6.9 Enhancements

BASIC Program Enhancements

• Now decodes/exports/encodes Pressure level data to "hundredths" accuracies.

ANALYTIC Module Enhancements

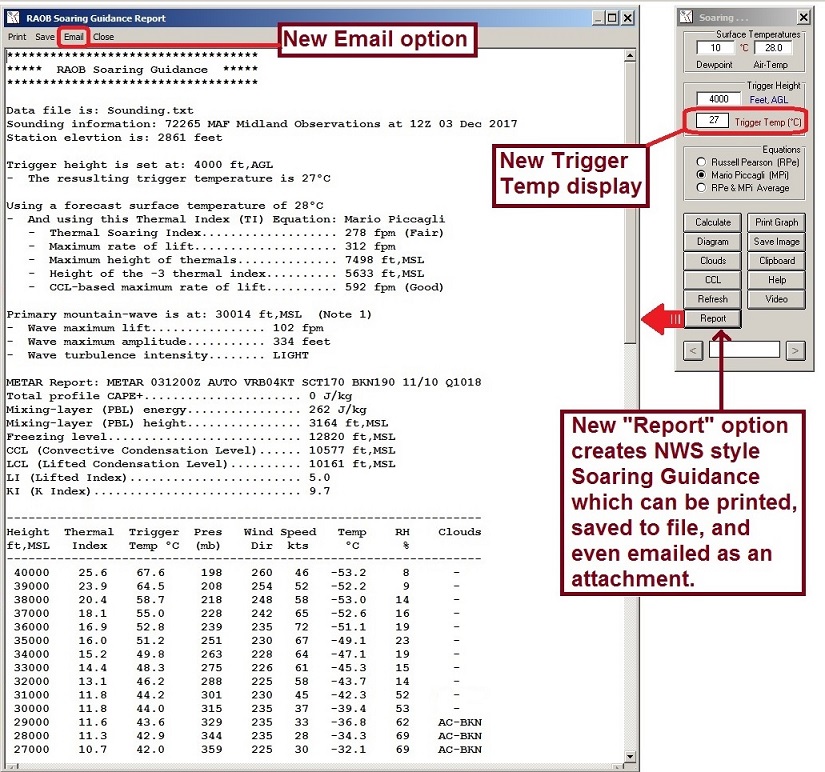

• Added option to produce a "Soaring Guidance Report" that can be emailed.
• Added the VTP (Violent Tornado Parameter) to the Sounding's custom Listing options.

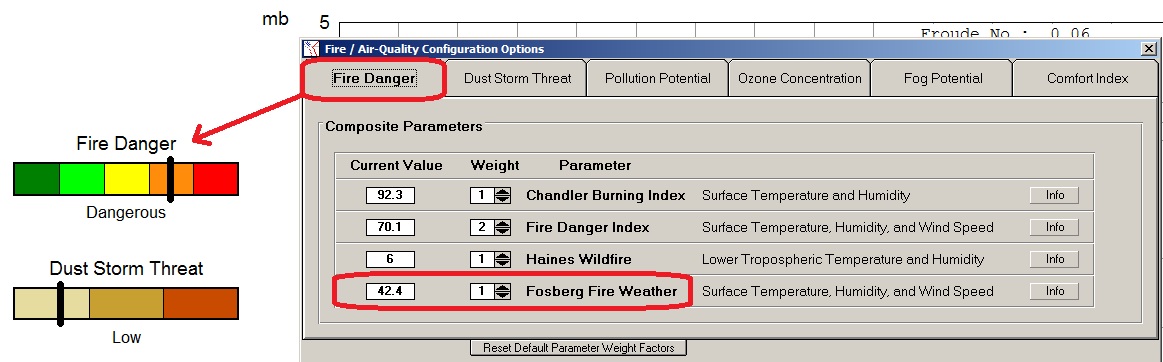

• Added the Fosberg Fire Weather Index to the Fire & Air-Quality display screen.
• Added the Low Level Jet (LLJ) wind speed to the Sounding's custom Listing options.
• Added the new Flooding Potential index for flash-flood/heavy-rain events.
• Added the new Tornado~TC Potential index for tropical cyclone generated tornados.
• Added the TCTP~UNC (Tropical Cyclone Tornado Parameter) developed at Univ of NC at Charlotte.

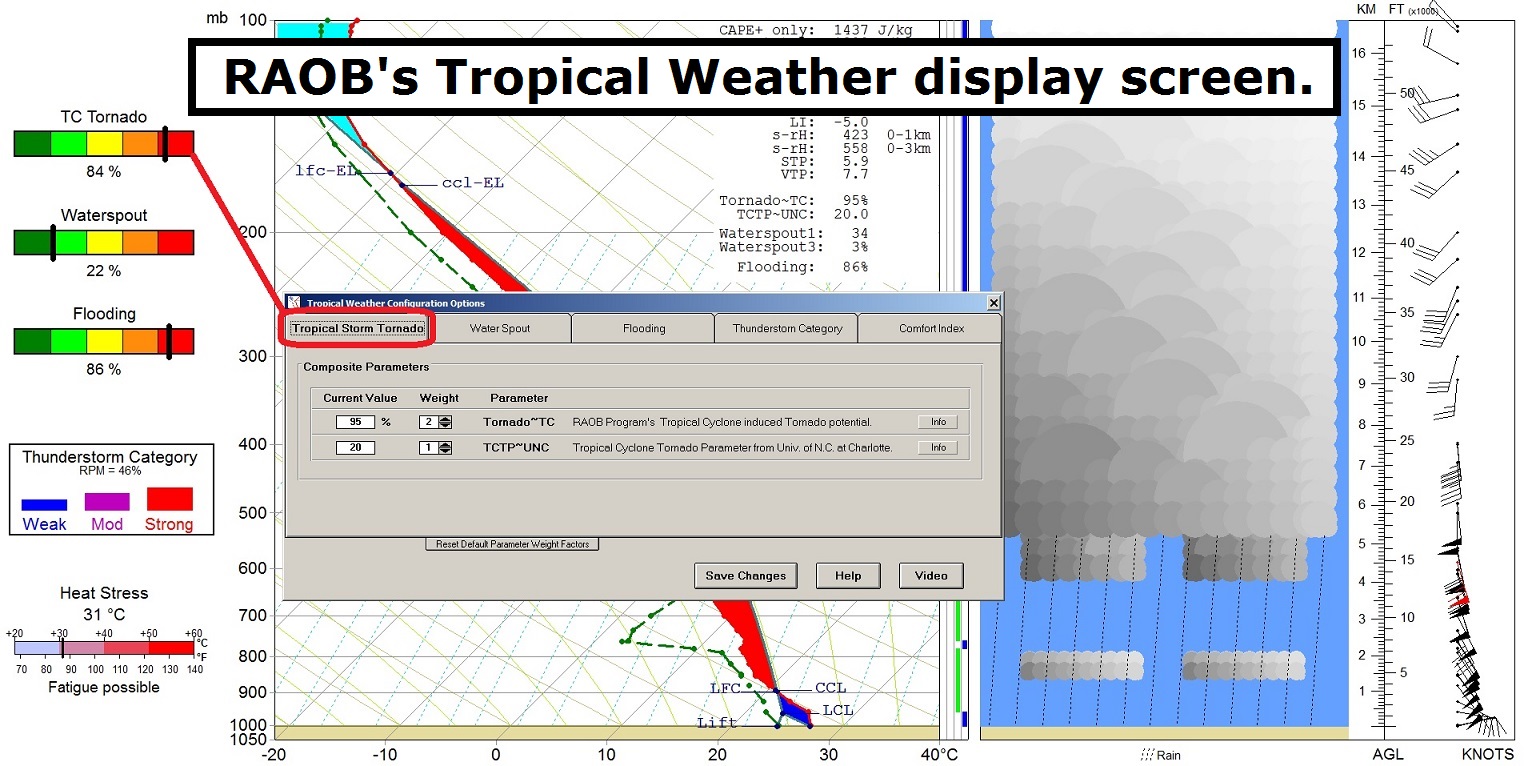

• Added the new Tropical Weather screen display option.
• Added the new MUCAPE 1-mb calculation configuration option.
• Expanded Tropopause analyses for those existing below 500 mb.

HODOGRAPH & INTERACTIVE Module

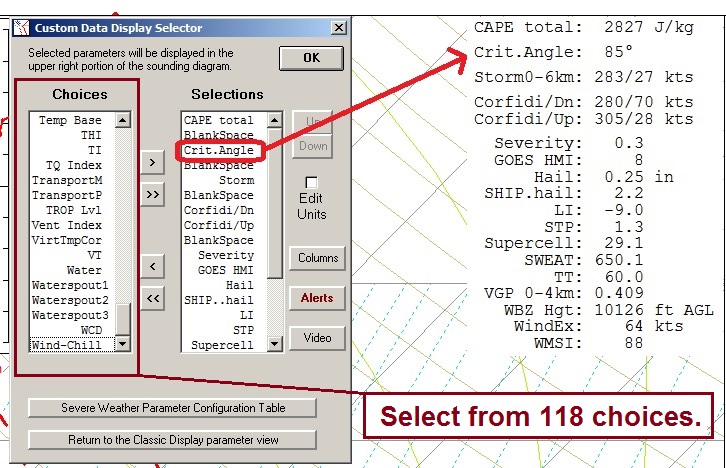

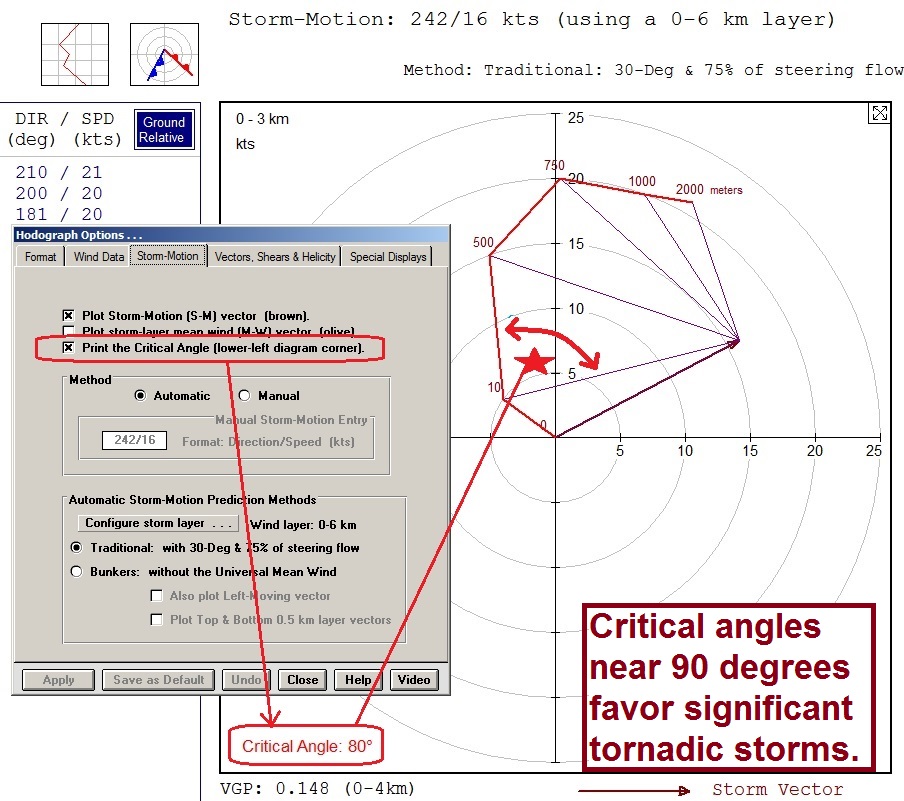

• Added option to print the "Critical Angle" on the Hodograph and Sounding.

SPECIAL DATA DECODERS Module

• Added the Iowa State University decoder for archived soundings.
• Added the CLIMAT TEMP and Surface Layer CLIMAT monthly soundings.
• Expanded the Vaisala Data Decoders capabilities.
• Expanded the SkySonde (iMet) Data Decoders capabilities.
• Expanded the iMet HD Data Decoder for format variations.
• Expanded the iMet SpotTime Data Decoder for format variations.

BINARY DATA DECODERS Module

• Expanded the BUFR Decoder to process more Internationally coded files.
• Expanded the BUFR Decoder to process NWS 9.4.7 RSS 1-Second & Consolidated profiles.
  These BUFR files are obtained from this NCEI (NCDC) archive.

ADVANCED RADIOMETER DECODER Module

• Expanded to process all 5 scalar parameters from all Radiometrics' data files.

TURBULENCE & MOUNTAIN-WAVE Module

• Added calculation of Froude & Brunt Vaisala frequency data, used for mountain weather.
• Added the Expanded screen display option incorporating Froude analyses.

CROSS-SECTION Modules

• Added the VTP (Violent Tornado Parameter) to the Meteogram plot options.
• Added the Froude Number to the Meteogram plot options.
• Added the Flooding Potential index to the Meteogram plot options.
• Added the Tornado~TC Potential index to the Meteogram plot options.
• Added the Key West, FL waterspout index (Waterspout3) to the Meteogram plot options.
• Added a "shadow line" option for Meteogram plots to enhance visual appearance.

ADVANCED EXPORT Module

• Added option to export the Metar Report.
• Added the VTP (Violent Tornado Parameter) as an export option.
• Added option to export Date/Time data for each data level.
• Added option to export the Virtual Potential Temperature for each data level.
• Added option to export the Brunt-Vaisala (wet) Frequency (N) for each data level.
• Added option to export the Froude Number.
• Added option to export Frost Point Temperature profile data.
• Added the Low Level Jet (LLJ) wind speed as an export option.
• Added the Flooding Potential index as an export option.
• Added the Tornado~TC Potential index as an export option.
• Added the TCTP~UNC (Tropical Cyclone Tornado Parameter) developed at Univ of NC at Charlotte.
•  Added option to export Wet-bulb potential temperature for each data level.

STANDARD ENCODERS Modules

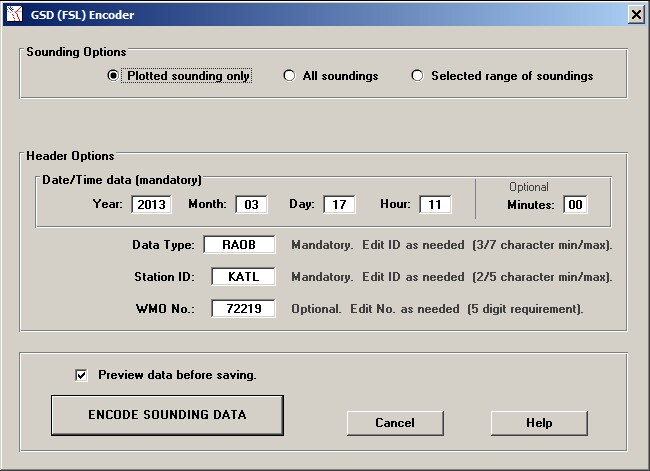

• Added the new GSD (FSL) data encoder.
• Improved the BUFKIT Encoder's date detection functions.

REAL-TIME DATA PROCESSOR Module

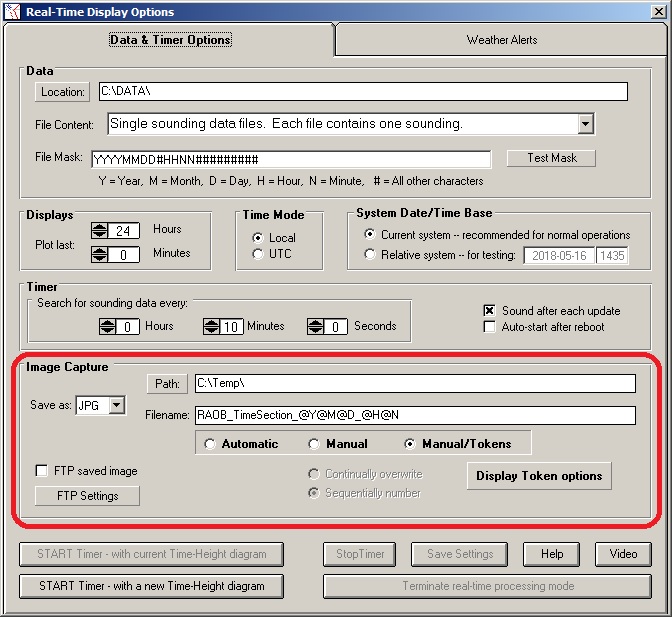

• Expanded image filename creation options.
